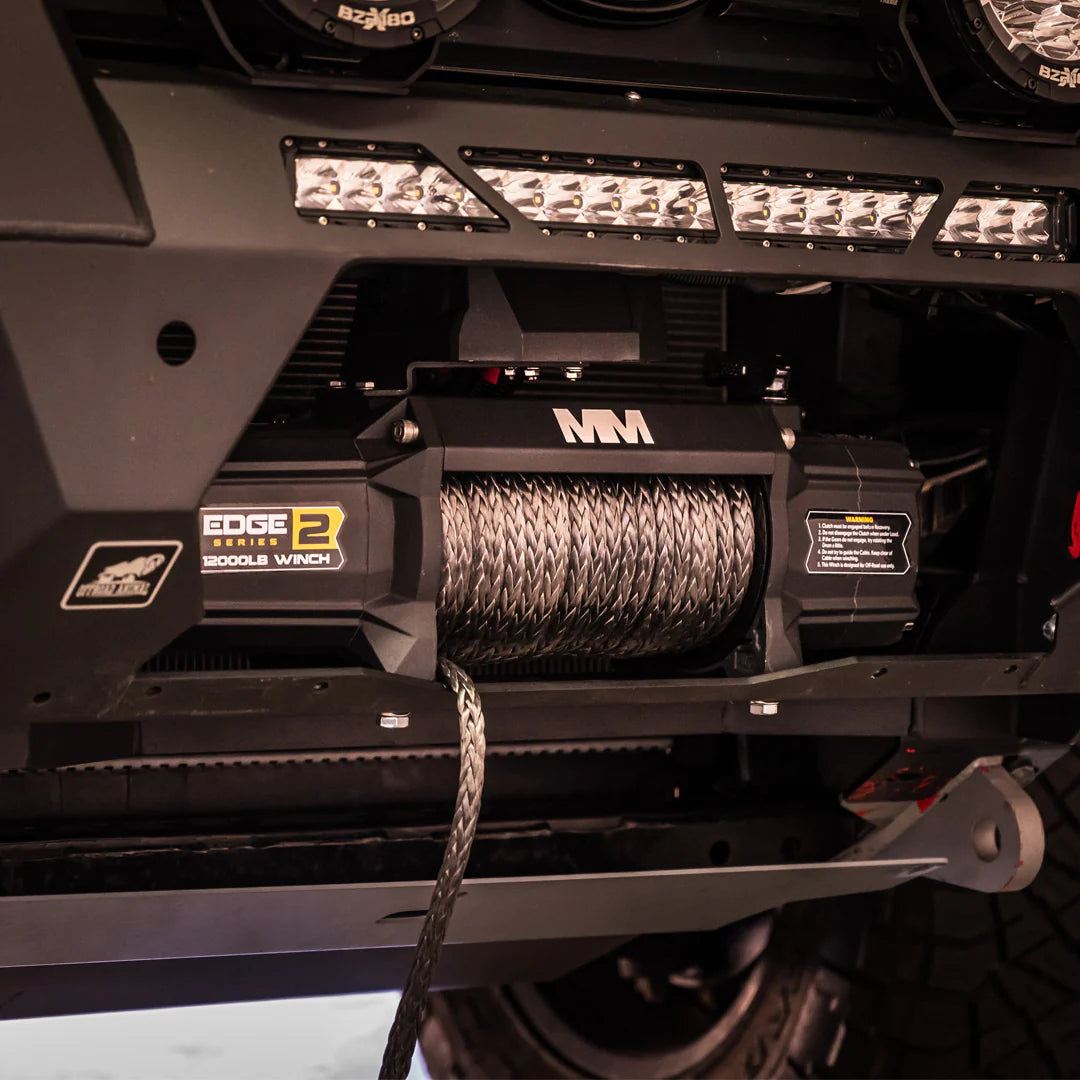

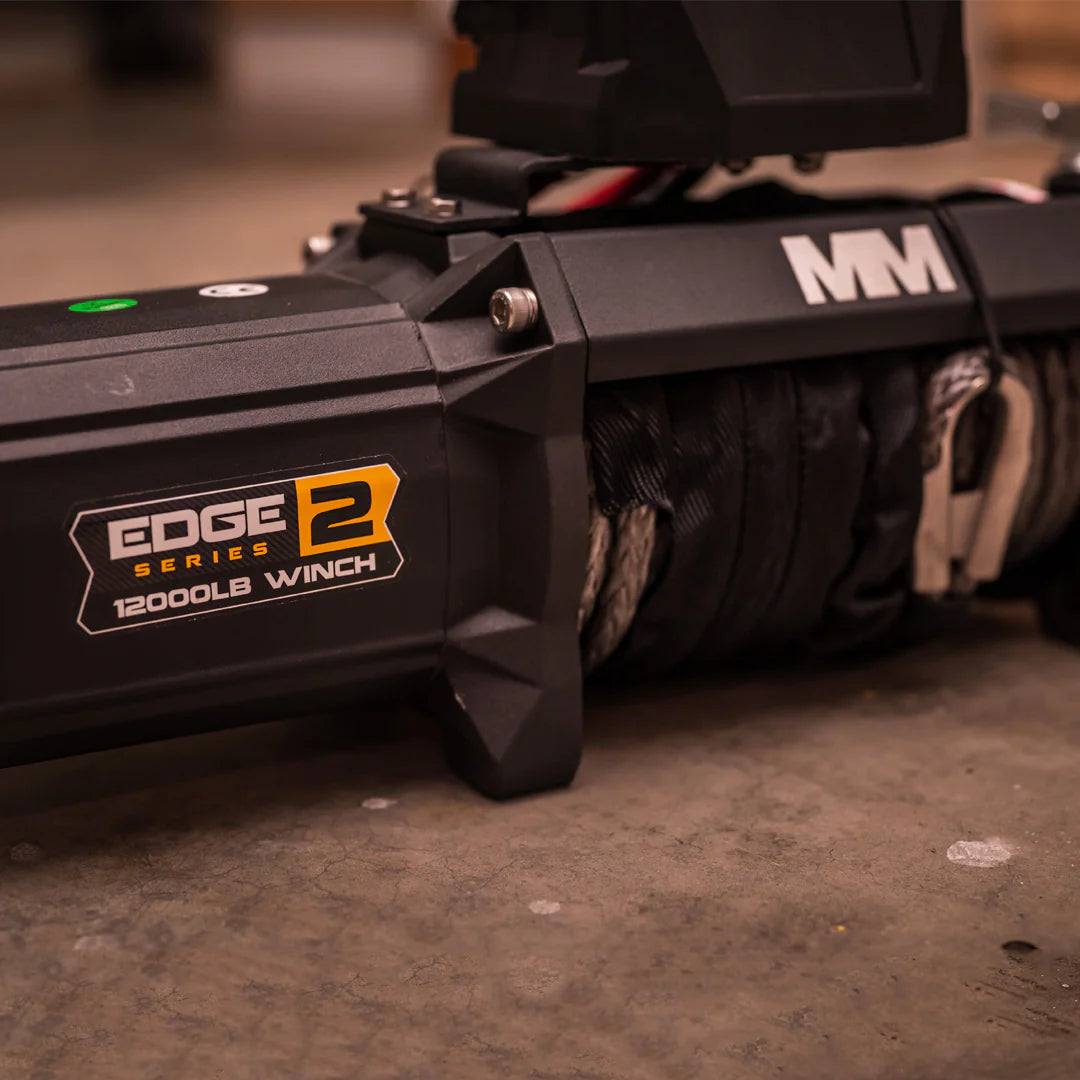

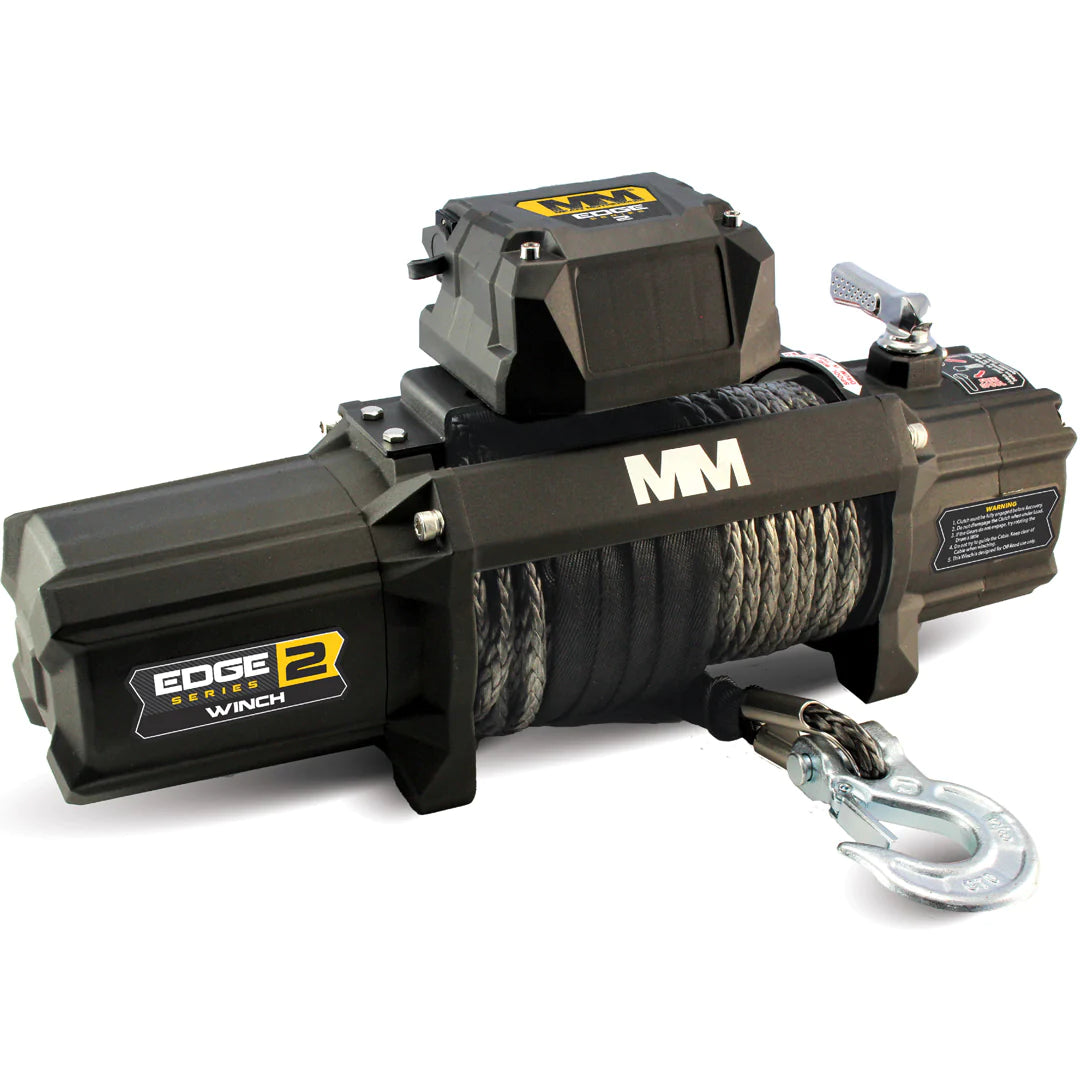

Mean Mother Edge 12000lb Synthetic Rope Winch
The EDGE series was built to appeal to the 4WD enthusiast who is passionate about quality but wants value for money. The EDGE series ticks all those boxes with standard features not found on comparable winches.
- Sintered steel bushings
- Hardened steel gears
- Stamped planetary gear carriers
- Ag-Cd contacts (silver cadmium alloy)
- Hardened steel brake
Specifications: 12000lb (5443kg) -
Voltage: 12 Volt
Gear Ratio: 295.75:1
Gear Tran: 3 Stage Planetary
Clutch: Sliding Ring Gear
Motor Type: Series Wound
Motor: 4.8 Hp, 3.6 Kw
Control: Hand Control, 5m lead
Braking: Automatic Direct Drive Load Holding
Drum Size: 67mm x 228mm(2.64" x 9")
Cable - Genuine Dyneema SK75: 9.53mm x 30.5m (3/8" x 100') synthetic rope
Clevis Hook: 10/8"
Overall Dimensions: 570mm x 168mm x 175mm (22.45" x 6.62" x 6.89")
Net Weight: 31kg
Mounting Bolt Pattern: 254mm x 114.3mm (10" x 4.5")
Battery Power Cables: 2 x 25mm², Tinned Copper with Sheath Protection
Motor Power Cables: 3 x 25mm², Tinned Copper with Sheath Protection
Recommended Battery: Minimum 650CCA
Finish: Powder Coated
ABOUT EDGE MECHANICALS:
Each winch in the EDGE series features a three stage planetary gearbox with sintered steel bushings which have been pressed and stamped (no pop rivets) into the gear carrier. A sliding ring gear clutch provides maximum strength and efficiency in forward and reverse winching operations with ease of free spool functionality. Each gear box is assembled and lubricated using synthetic grease and conforms to our strict assembly guidelines. Providing strength and enduring the pulling forces exerted is a hardened seamless steel drum assembly. Delivering maximum safety during a recovery is an automatic load holding in-drum brake system.
ABOUT EDGE ELECTRICALS:
Delivering power to the winch is a waterproof solenoid that uses Ag-Cd alloy contacts (Silver cadmium alloy). The technology and quality of these contactors resist arching when switching currents. This prevents the contactors from fusing together creating a closed circuit which can potentially damage your winch or vehicle and possibly serious injury to the operator.

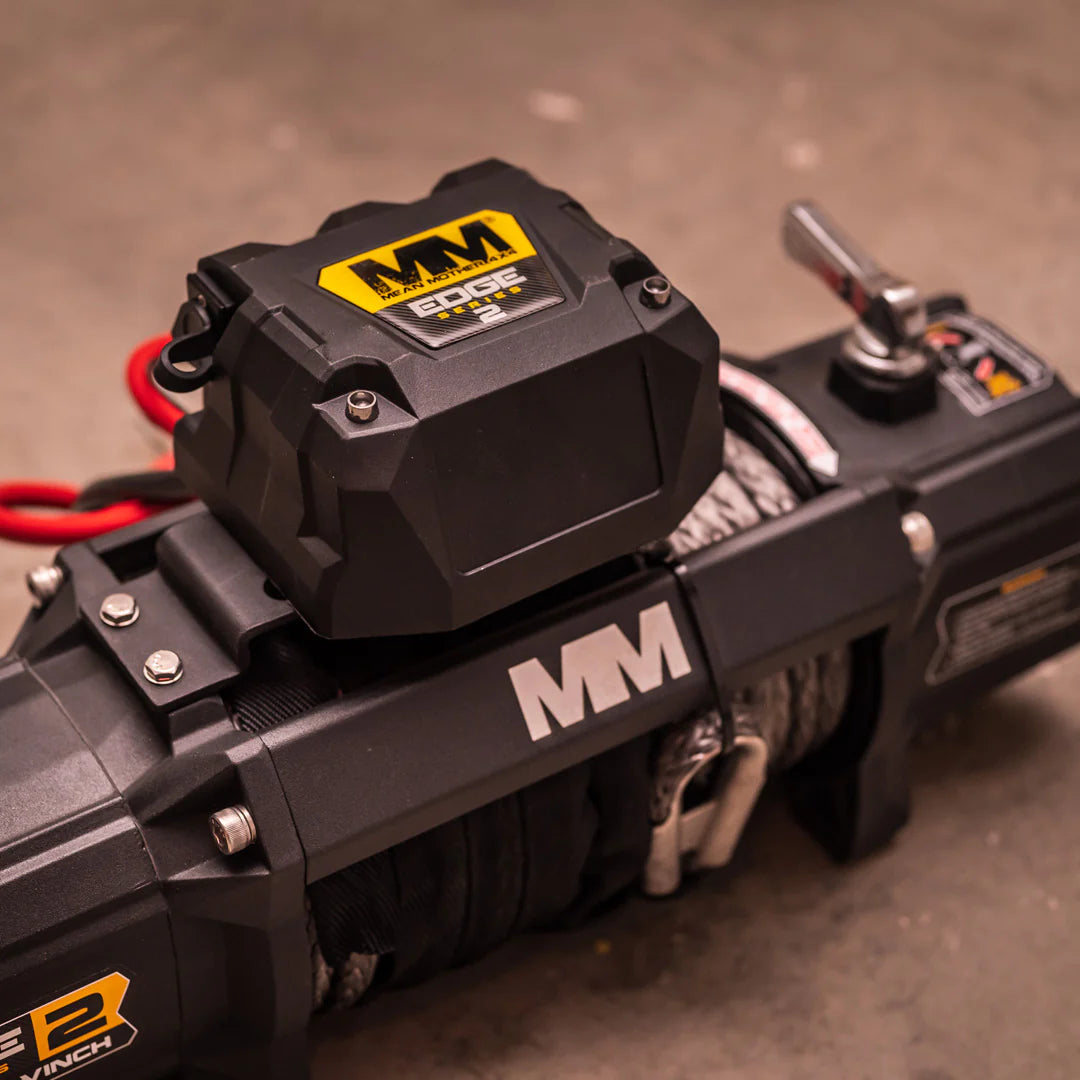

This solenoid is housed in a sleek and stylish control box which has a waterproof plug. The heavy duty hand control comes with a 5 metre power cord with the option to upgrade to a wireless remote control which offers the user complete control and flexibility to stand well clear of the winch during operation.
The 9500lb & 12000llb series winches use an efficient 12 volt 4.8hp series wound motor while the 6000lb runs a 3.6hp. Also available is a 24 volt 12000lb winch, using a 24 volt 4.8hp series wound motor. All these models offer performance and reliability in the toughest of conditions. We are so confident in the quality and design of our EDGE series winches we offer a limited 3 year mechanical component warranty and a 1 year electrical component warranty.
WHAT'S IN THE BOX?:
- Control Box
- Hand Control
- Tinned Copper Power Cable kit with Fibreglass Sheath Protection
- 9.53mm x 30.5m, (7x19 construction galvanised aircraft cable)
- Alloy Hawse Fairlead
- 10-8 Clevis Hook
- Hand Saver Hook Strap-
- Detailed Instruction Manual
- Warranty registration Card
- Winch and Fairlead Mounting Hardware (Bolts, Washer and Nuts)
- Side mounting Kit for control box
- Tie bar mounting kit for control box
- Spare Gearbox gasket
