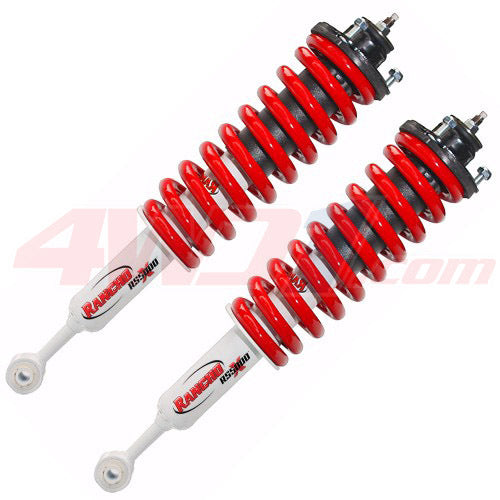

Quick Fit Rancho Moab Strut Assembly to suit Toyota 4x4 Hilux 2005 - 2015

Combining the Rancho RS5000X struts with Moab coils and OE style top plates. Our pre-assembled strut system will provide approximately 40mm of lift and come ready to bolt in.

The new RS5000-X shock series includes “Cross-Tuned Technology” – a unique valve design that allows for increased control and consistent ride profile with a larger shock body.

At lower speeds an eccentric disc in the valve shim stack engages the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting potholes or rocks, Rancho’s ‘Progressive Engagement Valving’ allows for early flow of fluid. This reduces harsh initial impact and controls the flow of fluid in a progressive, gradual manner. When driving on ‘corrugations’ or travelling rough fire tracks, the early flow of fluid helps minimize “rough ride” as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the ‘Progressive Engagement Valving’ will further engage to maintain control and stability.

4WD1 has carefully selected the Moab coil range to compliment the Rancho strut and shock absorbers.

Moab intelligent-design premium-quality coil springs support vehicle weight, maintain ride height, and absorb road shock and impact from rough terrain.

When additional force is placed on the springs or the vehicle meets a bump in the road, Moab coil springs absorb the load by compressing and rebounding in order to provide a comfortable ride and keep the tyres in contact with the ground. Available in different designs for various load-bearing requirements.

This achieves optimum ride height and a smooth drive. All Moab coil springs are developed using class-leading manufacturing processes to ensure the highest possible quality including Bar Peeling, Shot Peening and Triple Scragging. The coils are then electro-statically power-coated for a durable finish and good looks.

The Moab coils are available in either comfort/medium (0-50kg load) or constant load (50kg-100kg) rating.

They will lift approximately 40mm over standard.
