Description

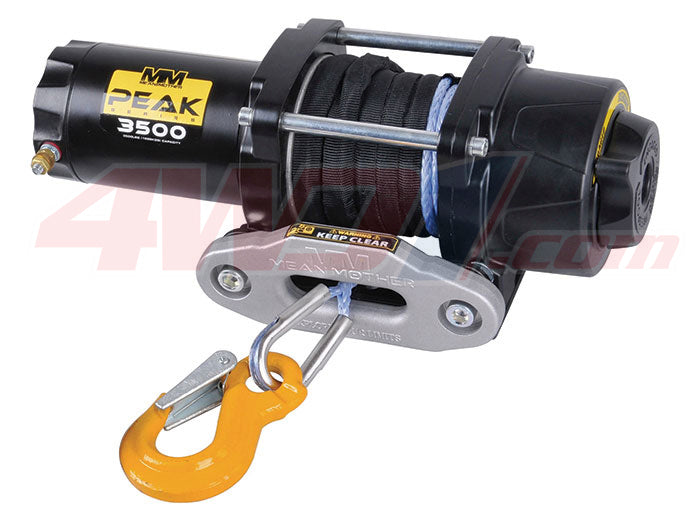

MEAN MOTHER ATV WINCH 'PEAK' 3500LB WITH SYNTHETIC ROPE

The Mean Mother 'PEAK' 3500lb synthetic rope ATV winch has been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.

It is supplied with a universal mounting plate for easy installation, and has more than enough power to recover ATV/UTV vehicles from most situations.

(Note): When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).

- Free spool function

- Steel bushings

- Steel gears

- Forward and reverse operation

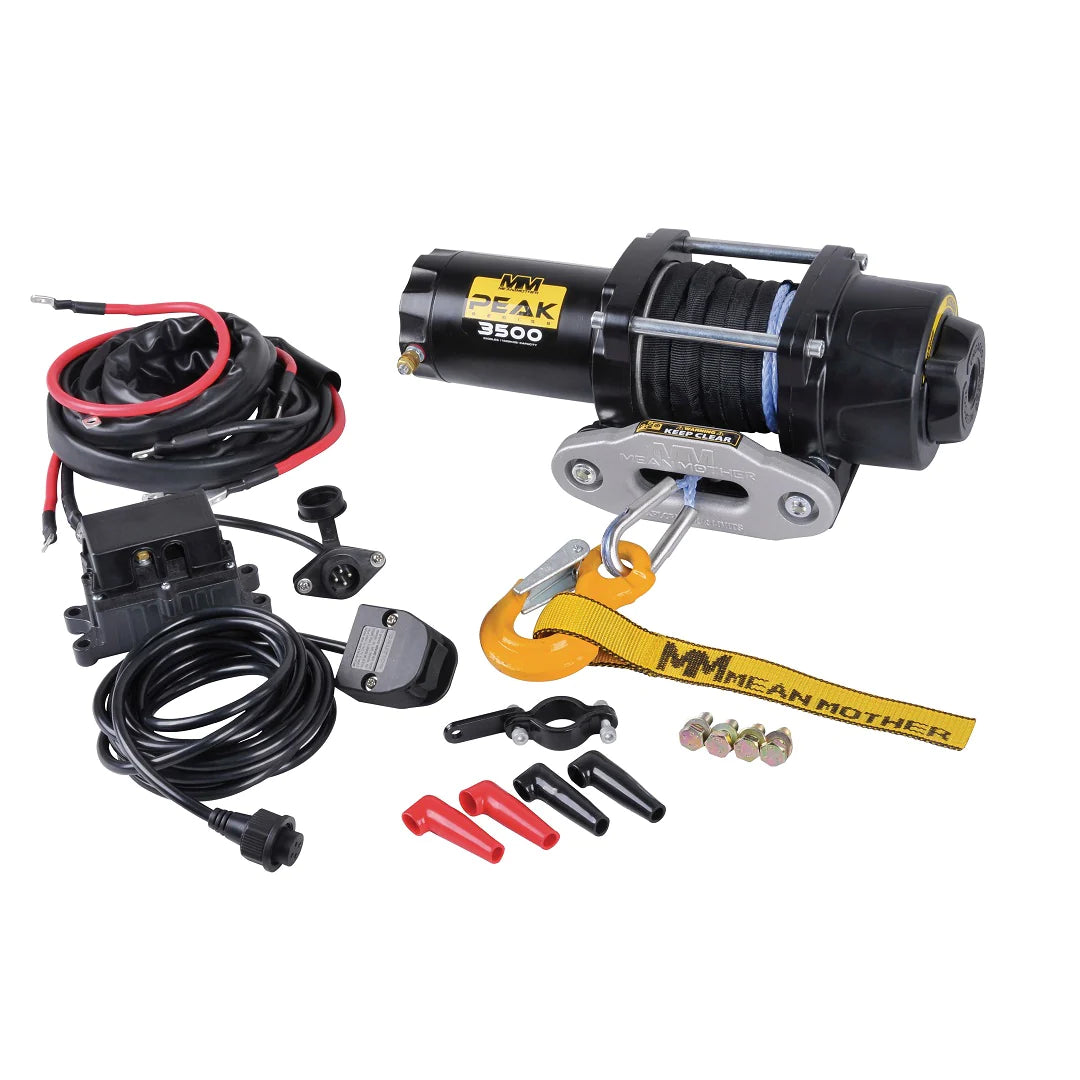

What's in the box?

- Winch

- Winch mounting plate

- Solenoid (contactor)

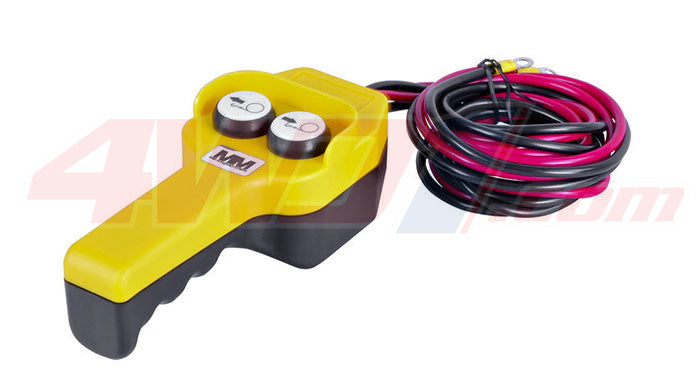

- Handle bar switch with mounting bracket

- Power cable kit

- 4.76mm x 15m, Genuine Dyneema® SK75

- Hawse Fairlead

- 6/6" Clevis Hook

- Hand Saver Hook Strap

- Detailed Instruction Manual

- Warranty registration Card

- Winch and Fairlead Mounting Hardware (Bolts, washer and Nuts)

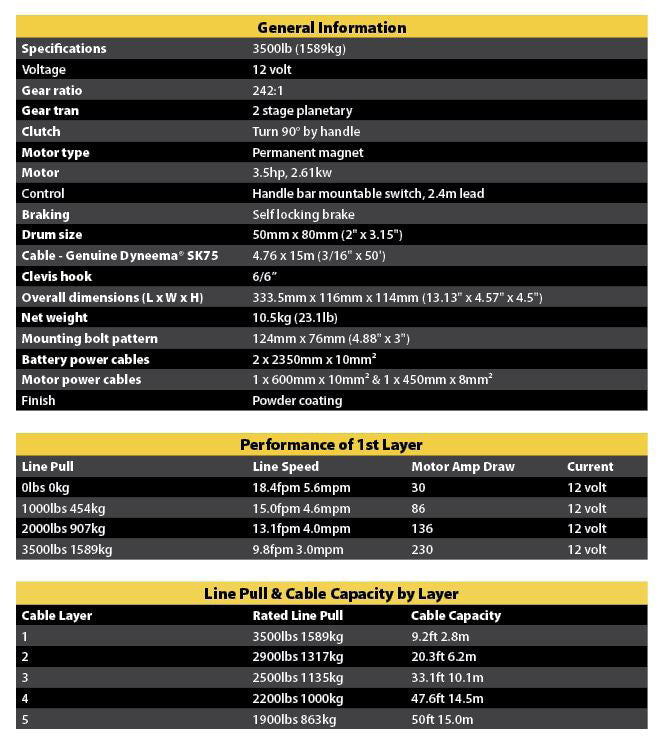

General Info:

- SPECIFICATIONS > 3500LB (1589KG)

- VOLTAGE > 12 VOLT

- GEAR RATIO > 242:1

- GEAR TRAN > 2 STAGE PLANETARY

- CLUTCH > TURN 90° BY HANDLE

- MOTOR TYPE > PERMANENT MAGNET

- MOTOR > 3.5 HP, 2.61 KW

- CONTROL > HANDLE BAR MOUNTABLE SWITCH, 2.4M LEAD

- BRAKING > SELF LOCKING BRAKE

- DRUM SIZE > 50MM X 80MM(2.5" X 3.15")

- CABLE >  GENUINE DYNEEMA® SK75 4.76MM X 15 METRES (3/16" X 50')

- CLEVIS HOOK > 6/6"

- OVERALL DIMENSIONS > 333.5MM X 116MM X 114MM (13.13" X 4.57" X 4.5")

- NET WEIGHT > 10.5KG

- MOUNTING BOLT PATTERN > 124MM X 76MM (4.88" X 3")

- BATTERY POWER CABLES > 2 X 2350MM X 10MM²

- MOTOR POWER CABLES > 1 X 600MM X 10MM² & 1 X 450MM X 8MM²

- FINISH > POWDER COATING
