MEAN MOTHER BOW SHACKLE 19MM PIN 5.0T

Regular price $25.00
Regular price $25.00 Sale price $25.00
Sale Sold out
Tax included.
NOTIFY ME

FREE AUSTRALIA-WIDE DELIVERY
On Orders Over $100*

AUSSIE
Owned and Based

AUSTRALIA'S LEADING
Suspension Specialist

NEED HELP?
Chat with us now!

Description

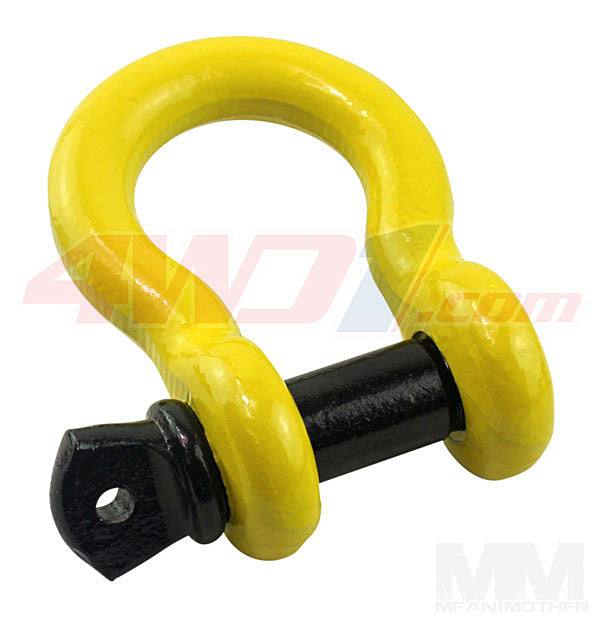

Mean Mother 5T Bow Shackle

Shackles are an essential recovery item and you can never have too many of them. They are most commonly used to attach recovery straps, tree trunk protectors, winch extension straps & snatch blocks.

Features & Specs:

-  High visibility

-  Max capacity 5000kg

-  Size: 19mm pin x 22mm.  5.0T

-  W.L.L. compliant with AS/NZS 2741.2002 load requirements.

Note:  A shackle's break point is six times the WLL (working load limit) when compliant with the standard.

Bow shackle sold as a single item. Purchase is (1) x 5.0T bow shackle.

TIPS:

TIP: To avoid seizing the screw pin, its always a good idea to back off about 1/2 to 1 turn after fully hand tightening. Shackle pins can seize due to the force exerted during recovery operations.

TIP: BEFORE USE: Inspect shackles before and after use for any damage. If pins are hard to turn or the shackle has been overstressed, it should be immediately replaced.

TIP: CAUTION: Shackles can become a lethal missile if something should break or fail during a recovery. Ensure that all spectators are well clear and all recovery lines have a dampening blanket on them (Refer page 41). Never load a shackle across its width because the load will be imposed on the threads. The force must be at right angles to the pin.
