RANCHO RS5000X FRONT ASSEMBLED STRUTS MAZDA BT50 11/2011 - 7/2020

Description

Quick Fit Rancho Moab Strut Assembly to suit Mazda BT50 4x4 2011 - 7/2020

Combining the Rancho RS5000X struts with Rancho coils and OE style top plates. Our pre-assembled strut system will provide approximately 40mm of lift and come ready to bolt in.

The new RS5000-X shock series includes “Cross-Tuned Technology” – a unique valve design that allows for increased control and consistent ride profile with a larger shock body.

At lower speeds an eccentric disc in the valve shim stack engages the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting potholes or rocks, Rancho’s ‘Progressive Engagement Valving’ allows for early flow of fluid. This reduces harsh initial impact and controls the flow of fluid in a progressive, gradual manner. When driving on ‘corrugations’ or travelling rough fire tracks, the early flow of fluid helps minimize “rough ride” as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the ‘Progressive Engagement Valving’ will further engage to maintain control and stability.

All Rancho Springs are designed and manufactured in Australia using a quality shot peening process to maximise spring durability. They also feature premium high strength silicon chrome alloy steel for enhanced performance and longer life.

The Rancho coils are available in either comfort/medium (0-60kg load) or constant load (60kg-100kg) rating.

They will lift approximately 40mm over standard.

Order now and receive FREE Australia-wide delivery.

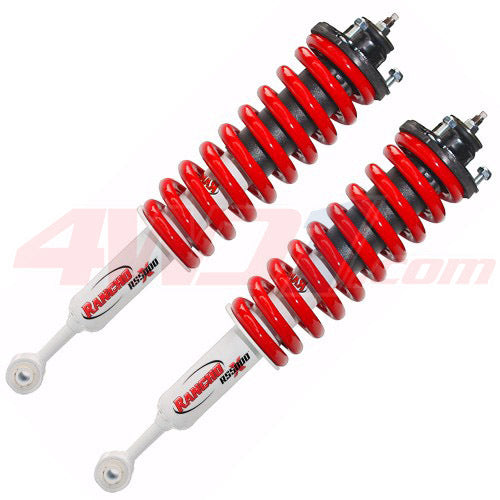

*picture for illustration
